"El Bileği sabitleme sistemi"
Distal radius ve dirsek kırıkları için komple iç osteosentez sistemi
Complete System, costitutes of: anatomical radial and ulnar pin plates, special preshaped clamps, special screws, threaded and unthreaded pegs, locking K-Wires, anatomical volar bearing plates with gyroscopic multiaxial holes in the distal part of the plate and with all screws locking, made of S.S.
Avantajlar
Sadece bir levha değil, tam bir çözüm!!!
|
Olecranon Sled
Trimed Olecranon sled system
Avantajlar
|
"Ulnar Osteotomy(shortening) System"
Osteotomy System, consisted of : a special, anatomical compression plate, which gets prestabilised before the cut of the bone. The plate has 6 holes and one hole with diagonal hole for the compression screwin order to compress the two cutted parts of the bone. In the set, there are S.S. Screws 3,2 mm , with lengths 10 - 26 mm, drills and one use disposable Wires. Guides for controlled bone cuts of 2, 3, 4 and 5mm diagonal slice
Avantajlar
- Anatomik prestabilize levhalar
- Rehberler eşliğinde kontrollü kesim
- Kemik parçalarının dairesel hareketlerine izin vermeyen özel bir işlem
- Diyagonal sıkıştırma vidası sayesinde iki kesik arasında güçlü bir sıkıştırma
"OMNITECH HAND"
Açıklama
Dynamic compression cannulated screws, with conical head, with two different pitches, self - tapping, with insertion guides, in diameters 1,7 - 2,3 - 3,0 και 3,5 mm, from Ti, for mini fractures, phalanx fractures, finger arthrodesis
"El ve Ayak Parçaları"
küçük kırıklar ve arthrodesis
SET

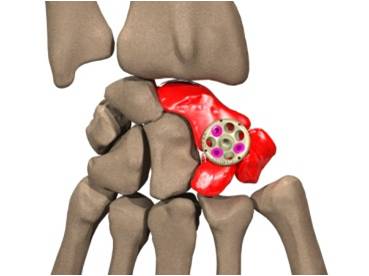

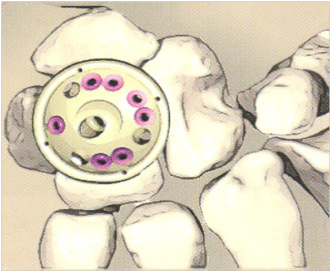

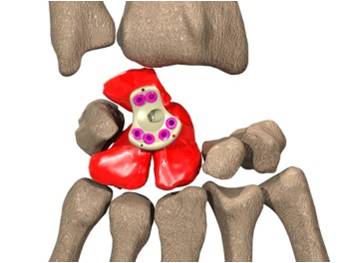

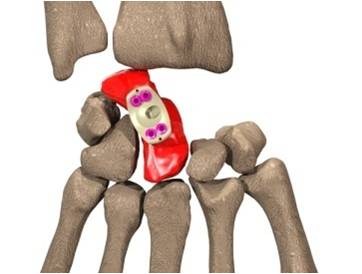

a) Xpode system for 4,3 or 2corner arthrodesis of the carpal small bones and of the small bones of the foot. This system is consisted of xpode4 cups in different sizes and shapes. These plates are round, made of the radiolucent material ΡΕΕΚ OPTIMA. This system comes with locking cannulated Ti screws

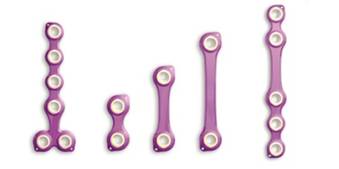

b) Internal Osteosynthesis system for mini fractures and phalanx arthrodesis, made of a combination of Ti and radiolucent material PEEK OPTIMA, with straight plates or Τ plates and with locking-multiaxial and cannulated screws made of Ti
Avantajlar
Düşük profilli levhalar (1,2mm)
|

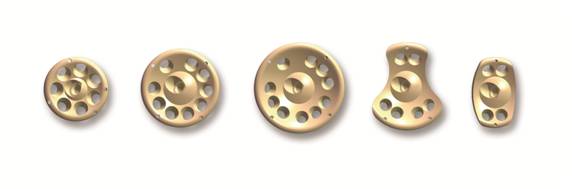

Xpode plate from radiolucent material
|
|
